Name: MSD Platinum 12 R LL Philips 928496705314
SKU: 415295

Product Details ＋

MSD Platinum 12 R LL 1CT/8 Philips 928496705314
MSD Platinum 12 R LL UNP/24 Philips 928496705308

Discounts available, depending on quantity .....
Call 516.766.2266 - or - E-mail:

Cross Ref:
MSD Platinum 12 R 1CT/8 Philips 928496705314
MSD Platinum 12 R LL UNP/24 Philips 928496705308
LMSDPLAT12R-P
ZB-MSD PLATINUM 12R LL
YODN MSD 260R9

MSD Platinum - The power to light your creativity

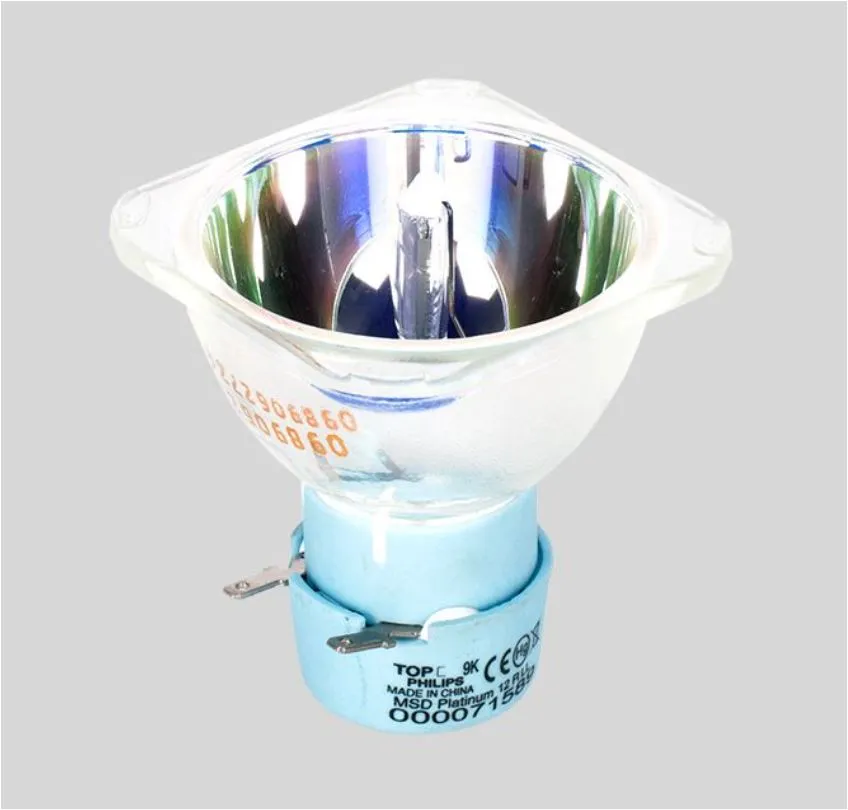

The Philips MSD Platinum 12 R LL is a compact and powerful lamp which is perfect for small and lightweight fixtures. It features a short arc, high colour temperature and an innovative reflector which produces a sparkling, high beam intensity for outstanding colour reproduction.

Product Specification

Code: 928496705314 8718699683542
Wattage: 260W
Voltage: 80V
Flux: 17,100LM
Colour temp: 7,800K
Average Life: 2,000 hours
Dimmable: Yes

MSD Platinum 12 R LL -D(max) 51.5mm -T(max) 6.8mm - O 0.95mm - C(max) 57.1mm
Operating Position UNIVERSAL [ Any or Universal (U)]
Main Application Stage/Touring
Life to 50% Failures (Nom) 2000 h
Life to 50% Failures entertainment cycle (Nom) 6000 h
System Description
Reflector-E20.6
Light Technical
Color Code 2
Luminous Flux (Min) 15000 lm
Luminous Flux (Nom) 17100 lm
Chromaticity Coordinate X (Max) 318
Chromaticity Coordinate X (Min) 285
Chromaticity Coordinate X (Nom) 303
Chromaticity Coordinate Y (Max) 324
Chromaticity Coordinate Y (Min) 294
Chromaticity Coordinate Y (Nom) 309
Correlated Color Temperature (Nom) 7800 K
Operating and Electrical
Power (Nom) 260 W
Voltage (Max) 80 V
Voltage (Min) 55 V
Controls and Dimming
Dimmable Yes
Mechanical and Housing
Cap-Base Information
Luminaire Design Requirements
Pinch Temperature (Max) 350 °C
Product Data
Full product code 871869968354200
Order product name MSD Platinum 12 R LL 1CT/8
EAN/UPC - Product 8718699683542
Order code 928496705314
Numerator - Quantity Per Pack 1
Numerator - Packs per outer box 8
Material Nr. (12NC) 928496705314
Net Weight (Piece) 72.000 g
